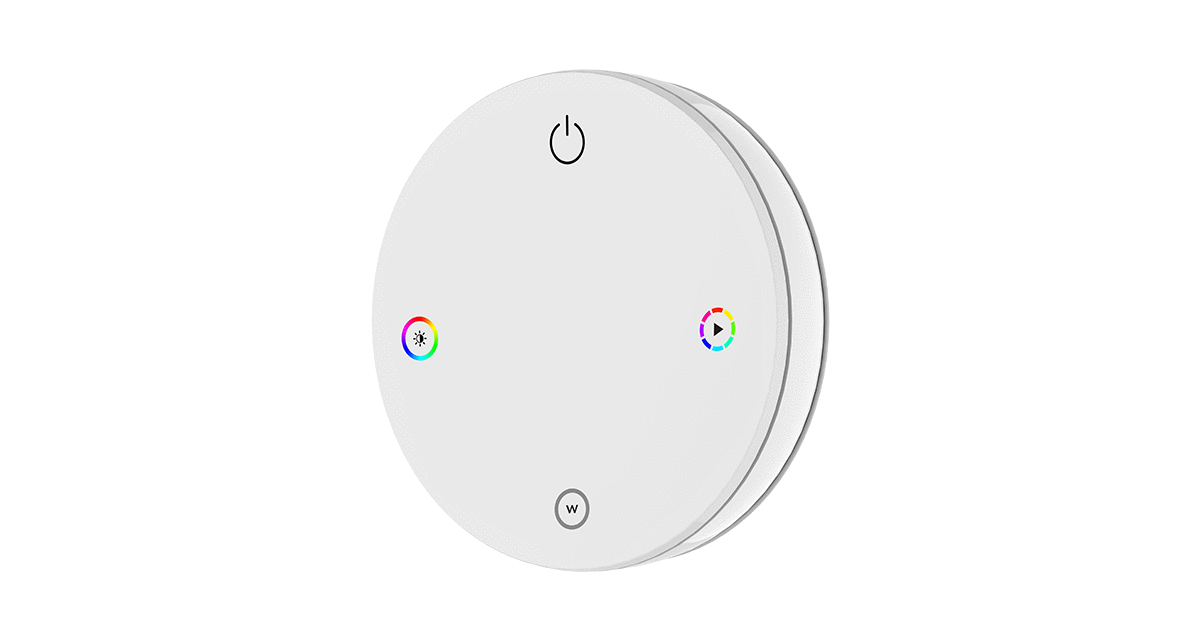

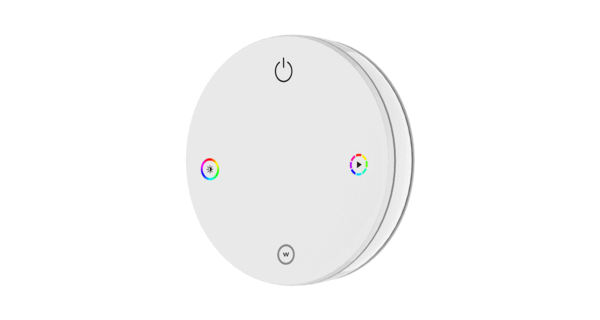

Introducing the RK4 Series 4-Button RF Remote Controller – Simplifying Your Lighting Control with Ease!

Key Features:

• Versatile Compatibility:
  • Compatible with single color, dual color (warm white + cool white), or RGB/RGBW LED controllers, offering flexibility for various lighting setups.
• Multi-Receiver Matching:
  • Each remote has the capability to match with one or more receivers, providing convenient control for multiple lighting sources.
• Battery-Powered Convenience:
  • Powered by a CR2032 battery for efficient, long-lasting operation.
• LED Indicator Operation:
  • Operate with an LED indicator light, providing visual feedback for seamless control.

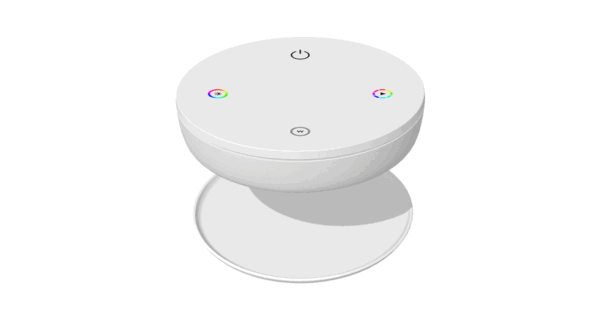

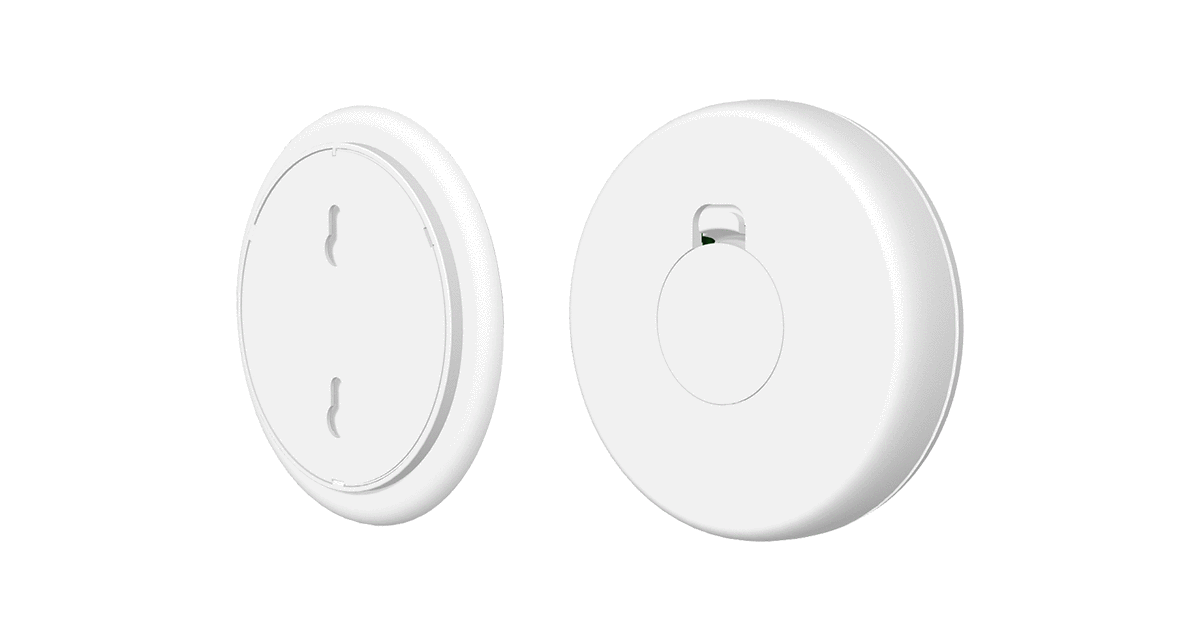

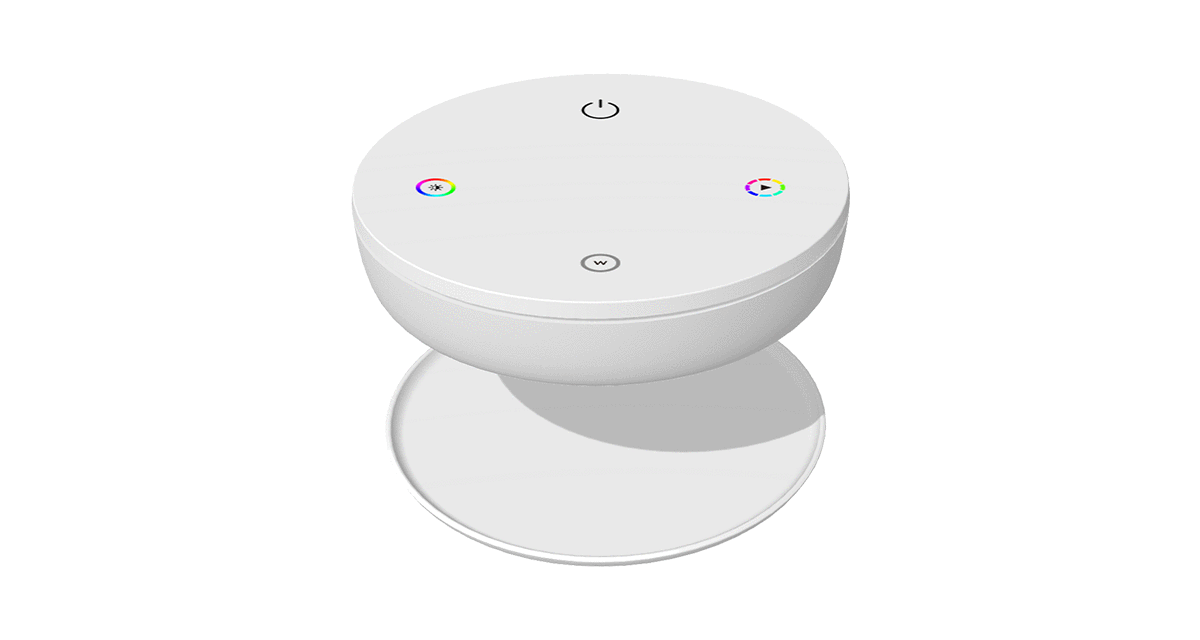

• Magnetic Back Design:
  • Equipped with a magnet on the back, allowing the remote to be conveniently stuck on a back holder.

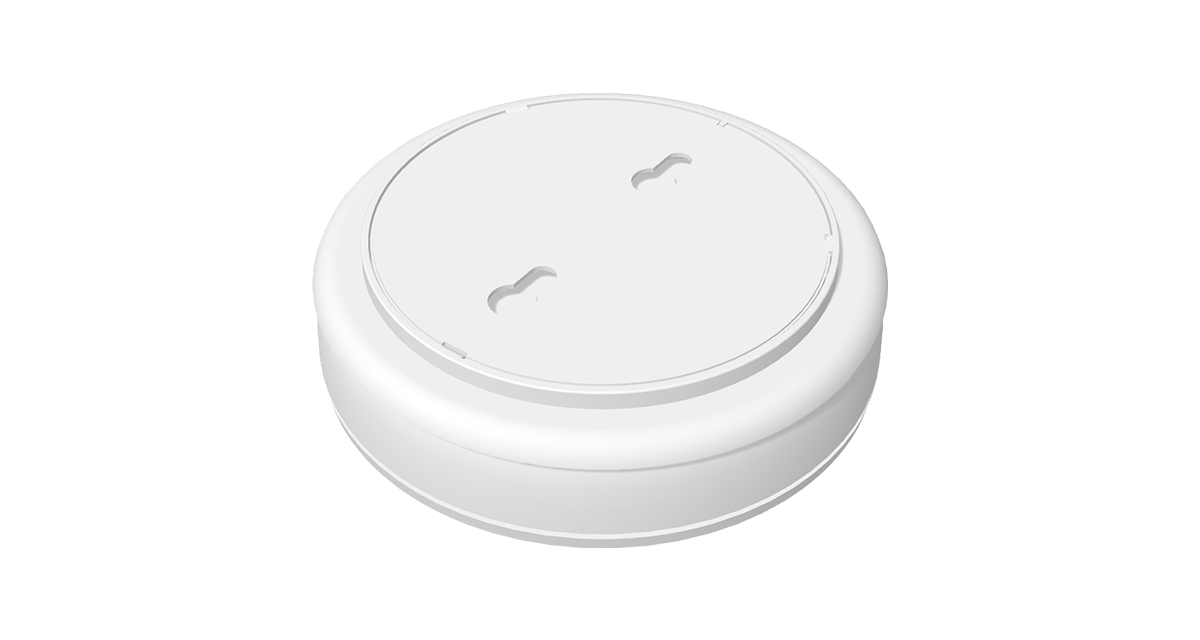

Installation Options: To fix the remote back holder, two installation options are offered for selection:

• Option 1: Fix the remote’s back holder on the wall with two screws.
• Option 2: Adhere the remote’s back holder to the wall with a glue sticker.

User-Friendly Operation:

• Match Remote Control:
  • Short press the match key, then immediately press the on/off key on the remote. The LED indicator will flash, signifying a successful match.
• Power Restart Match:
  • Switch off the power, then switch it on again. Immediately short press the on/off key 3 times on the remote. The light blinks 3 times, confirming a successful match.
• Delete Option:
  • Switch off the power, then switch it on again. Immediately short press the on/off key 5 times on the remote. The light blinks 5 times, indicating that all matched remotes were successfully deleted.
• Factory Reset:
  • Press and hold the match key for 5s to delete all matches. The LED indicator will flash, indicating the deletion of all matched remotes.

Technical Specifications:

• Output Signal: RF DIM/CCT/RGB/RGBW
• Certifications: CE, EMC, LVD, RED
• Safety Information:
  • Pay attention to battery polarity during installation.
  • Remove the battery if the remote control is not used for an extended period.
  • If no response from the receiver, re-match the remote.
  • Handle the remote with care to avoid falling.
  • For indoor and dry location use only.

Button Functions:

• : Turn on/off light.
• : Short press to switch five color temperatures in sequence; long press to increase or decrease the color temperature continuously.
• : Short press to sequentially switch 24 static colors; long press to adjust brightness.
• : Short press for white light; long press to adjust white light brightness.
• : Short press sequence to toggle dynamic mode; long press for 2 seconds to adjust speed.
• : Switch between 10% and 100% brightness.
• : Brightness increase, short press 10 levels, long press brightness increases continuously.

Elevate your lighting control experience with the RK4 Series 4-Button RF Remote Controller,
