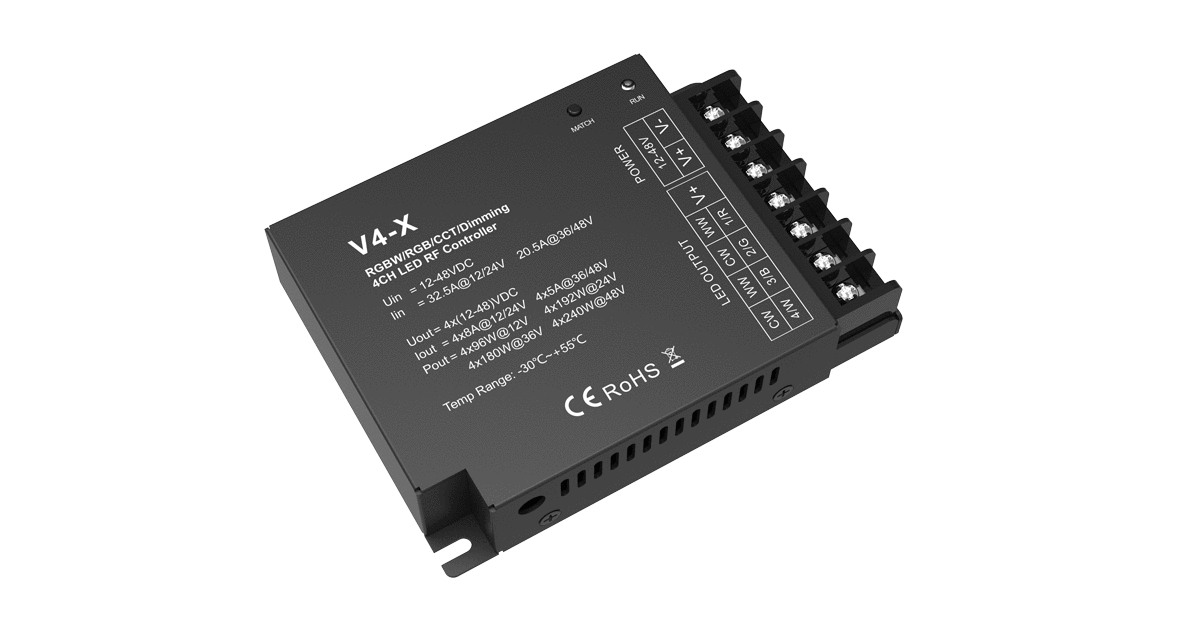

Introducing the PWM 4 Channel Constant Voltage LED RF Controller – Unleash the Power of Versatile Lighting Control!

Key Features:

1. Versatile Channel Output: Experience the freedom of controlling up to 4 channels with a maximum output of 8A per channel. Illuminate your space with precision and creativity.
2. Seamless Compatibility: Pair the controller effortlessly with RF 2.4G single zone or multiple zone single-color, dual-color, and RGB/RGBW remote controls. Achieve dynamic lighting effects with ease.
3. Multi-Remote Control Capability: A single RF controller can seamlessly accept signals from up to 10 remote controls, providing a centralized and efficient lighting control solution.
4. Smooth Dimming Experience: Enjoy a seamless dimming experience with 4096 levels of precision, ranging from 0% to 100%. Say goodbye to distracting flashes and create the perfect ambiance.
5. Dynamic RGB/RGBW Modes: Explore endless lighting possibilities with built-in dynamic modes, including jump or gradual change styles, specially designed for RGB/RGBW lights.
6. Auto-Transmitting Function: The controller automatically transmits signals to other controllers within a 15m barrier-free space. Achieve synchronization across multiple controllers effortlessly.
7. Fade In and Out Effect: Personalize your lighting experience with selectable fade in and out effects, adding a touch of sophistication to your space.
8. Overload/Short Circuit Protection: Rest easy with the controller’s built-in protection mechanism, automatically recovering from overload or short circuits for added safety.

Technical Specifications:

• Input Voltage: 12-48VDC
• Output Type: Constant Voltage
• Output Current: 4x8A@12/24V, 4x5A@36/48V
• Output Power: 4x96W@12V, 4x192W@24V, 4x180W@36V, 4x240W@48V
• Operation Temperature: -30°C ~ +55°C
• Dimming Data: RF 2.4GHz, 4096 levels, 0-100%
• Control Distance: 15m (Barrier-free space)
• PWM Frequency: 1000Hz (default), Dimming Curve: Logarithmic

User-Friendly Match and Delete Options:

• Match Key:
  • Short press the match key, then immediately press the on/off key (single zone remote) or zone key (multiple zone remote) on the remote. The LED indicator will fast flash, indicating a successful match.
• Power Restart Match:
  • Switch off the power, then switch it on again, repeating the process. Immediately short press the on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times, confirming a successful match.
• Delete Option:
  • Switch off the power, then switch it on again, repeating the process. Immediately short press the on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times, indicating that all matched remotes were successfully deleted.
• Factory Reset:
  • Press and hold the match key for 5s to delete all matches. The LED indicator will fast flash, signifying the deletion of all matched remotes.
